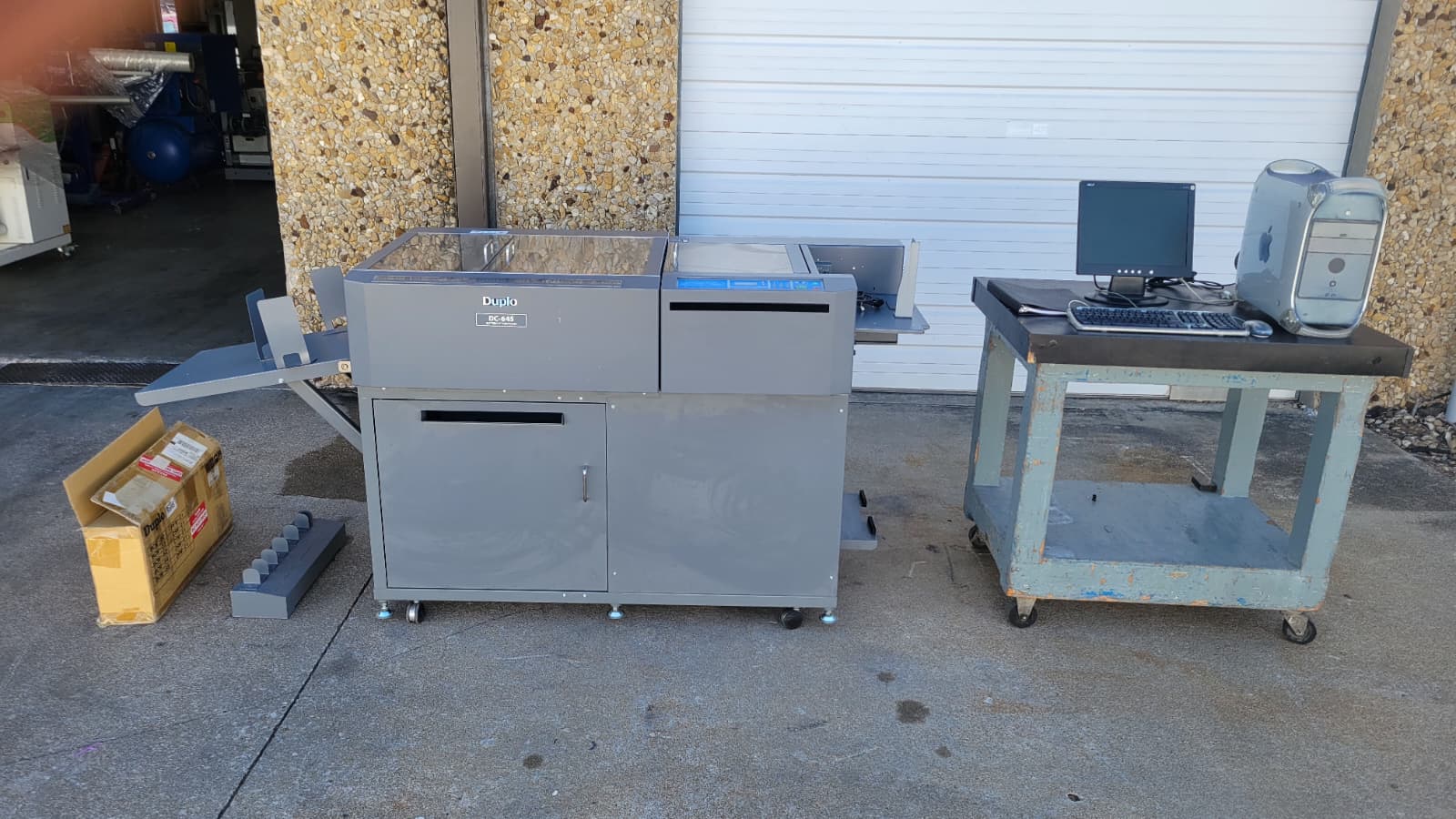

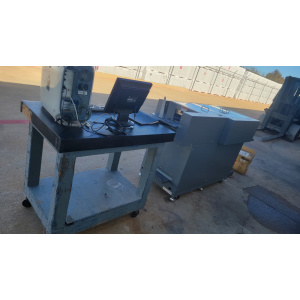

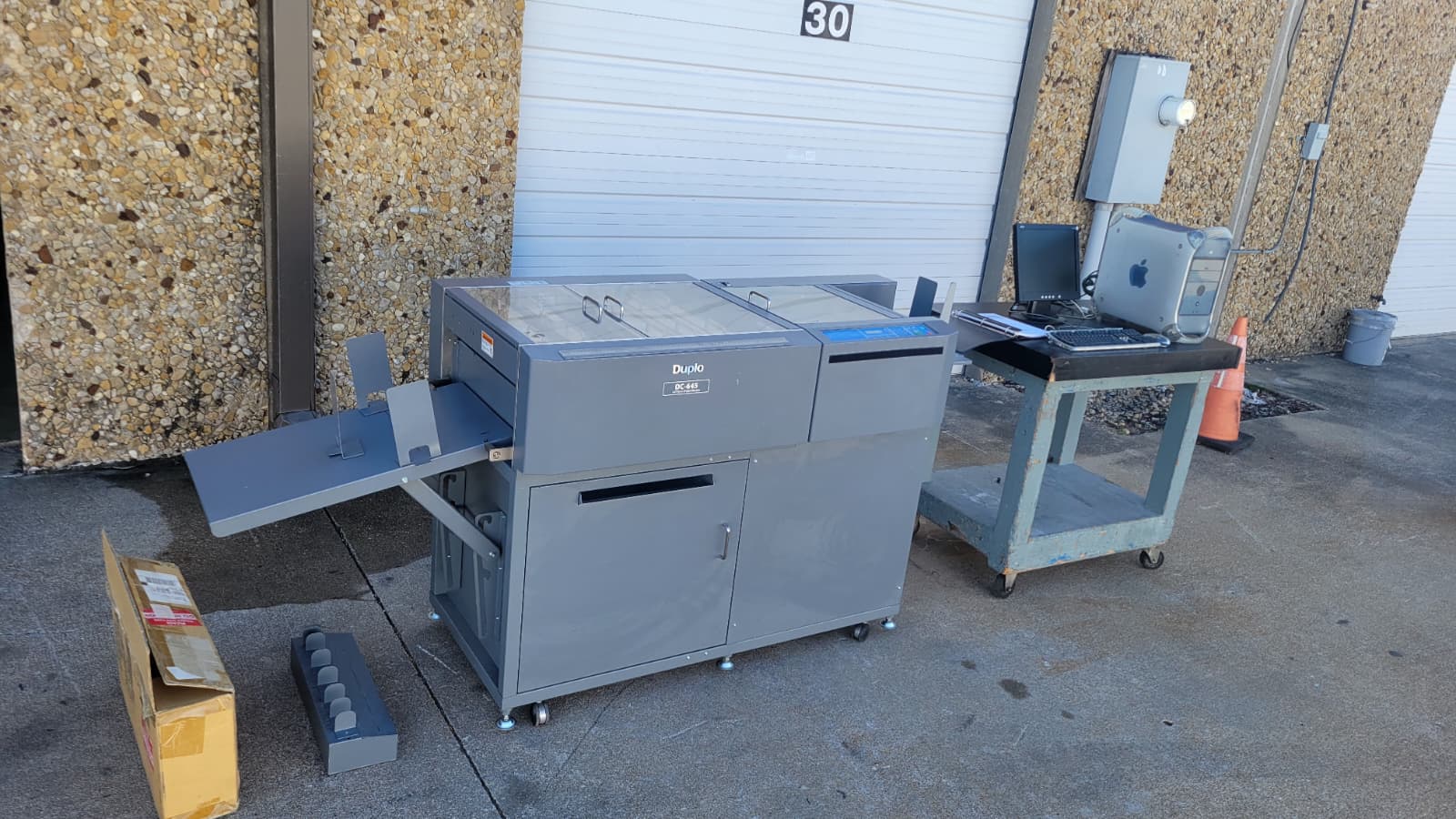

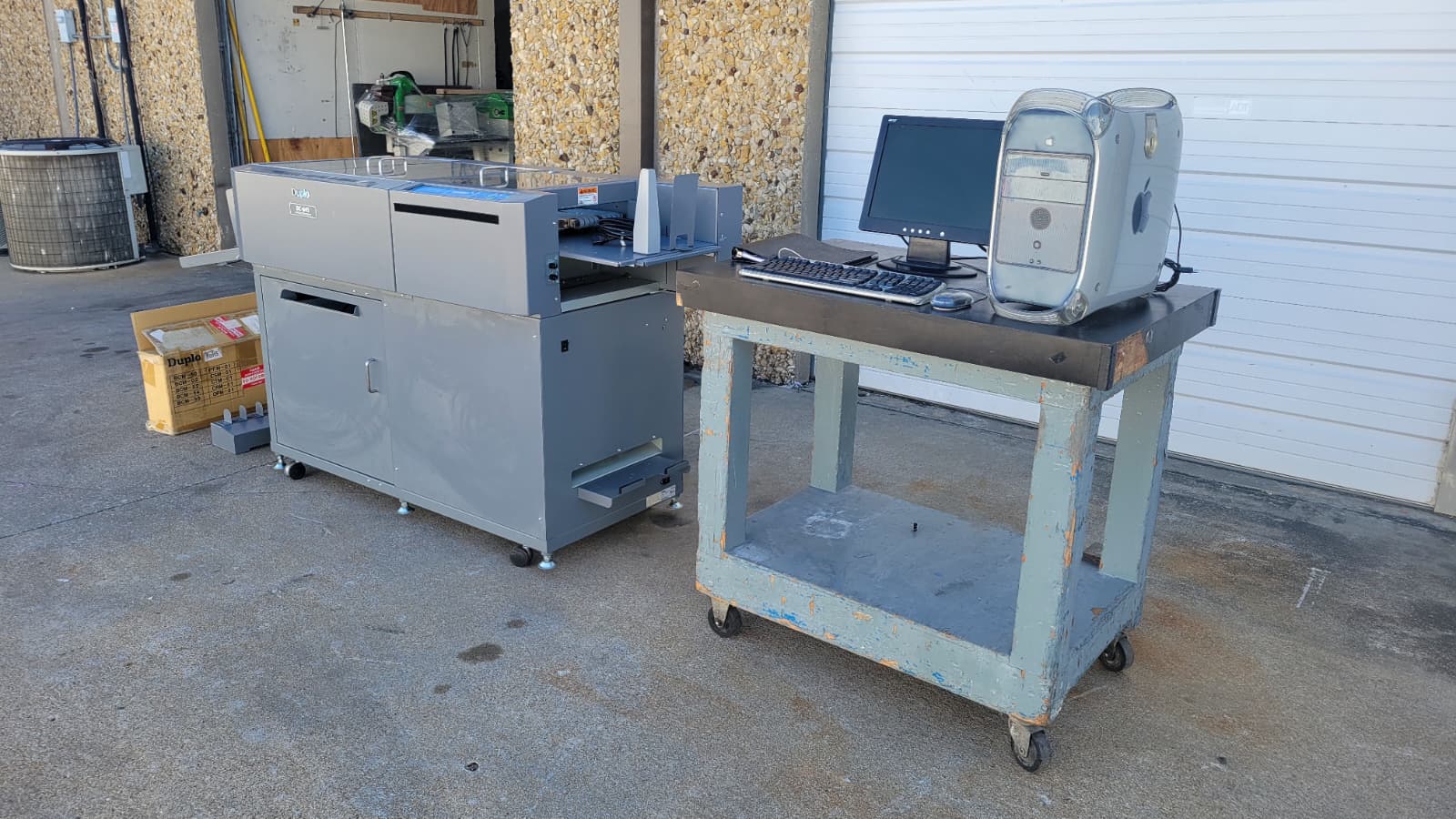

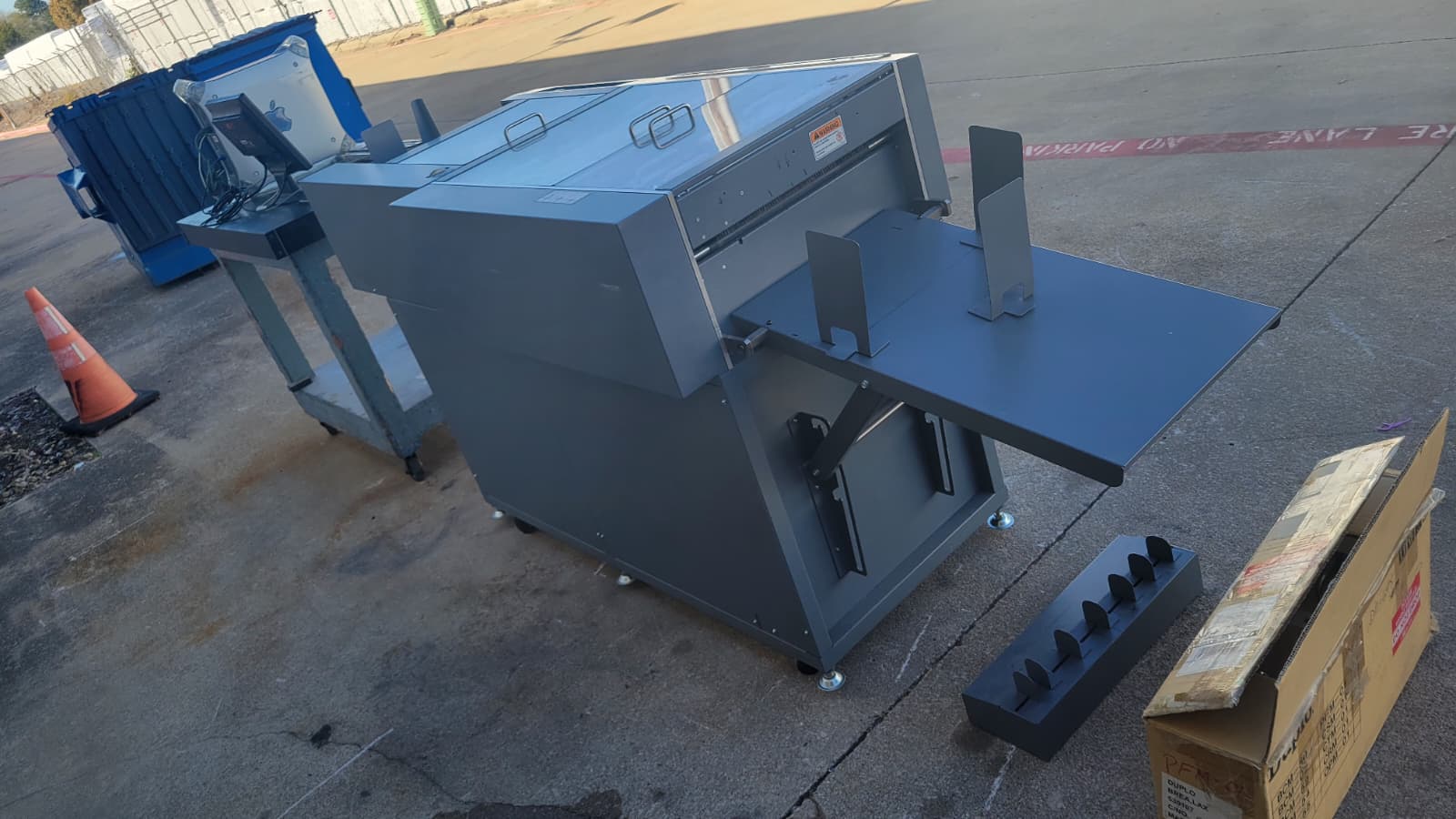

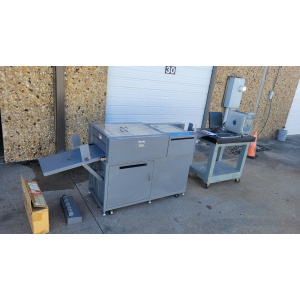

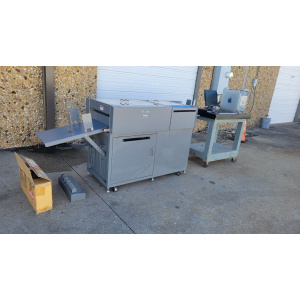

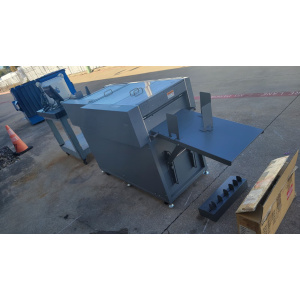

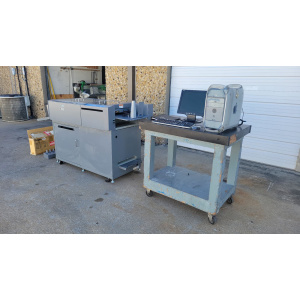

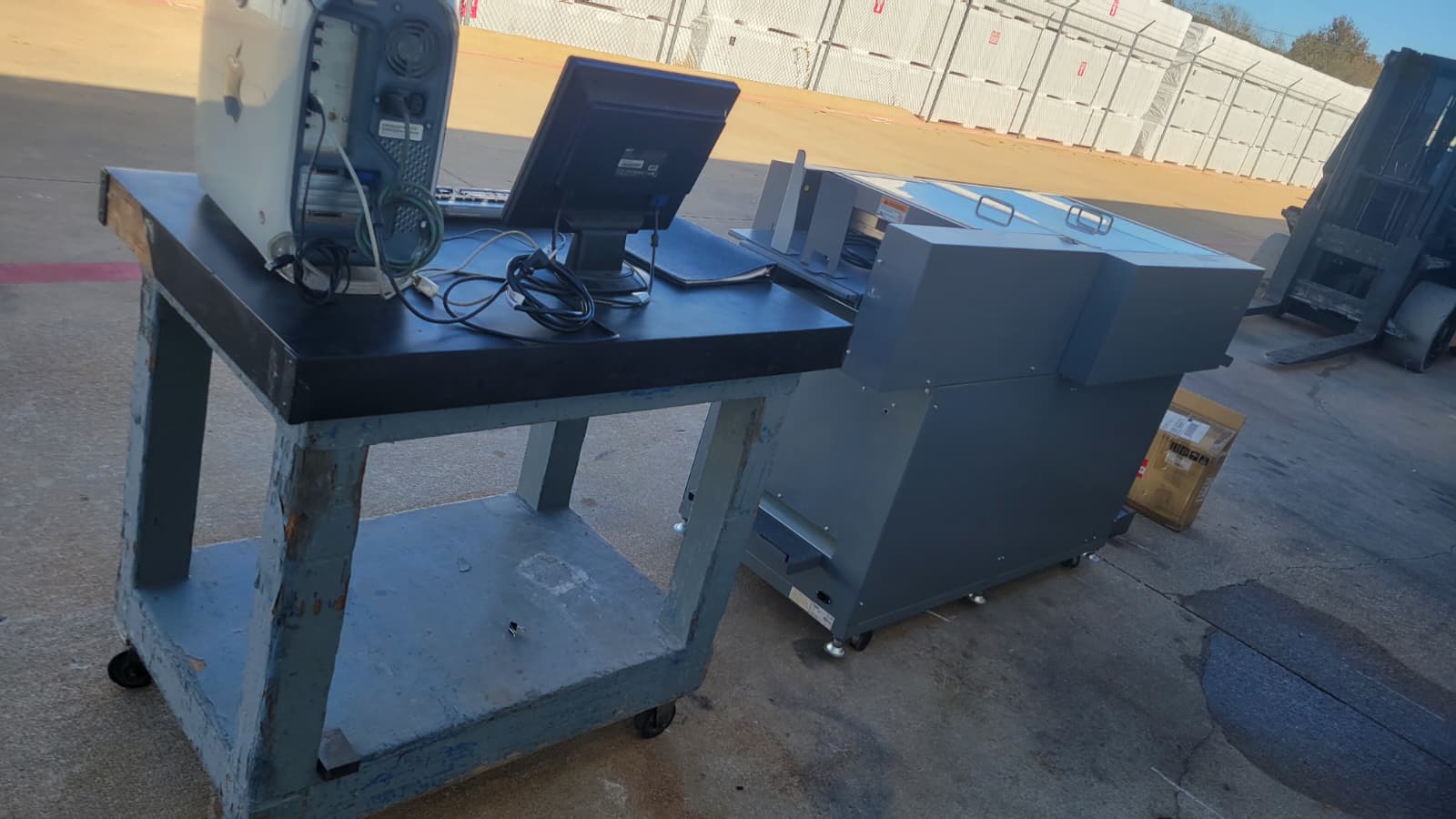

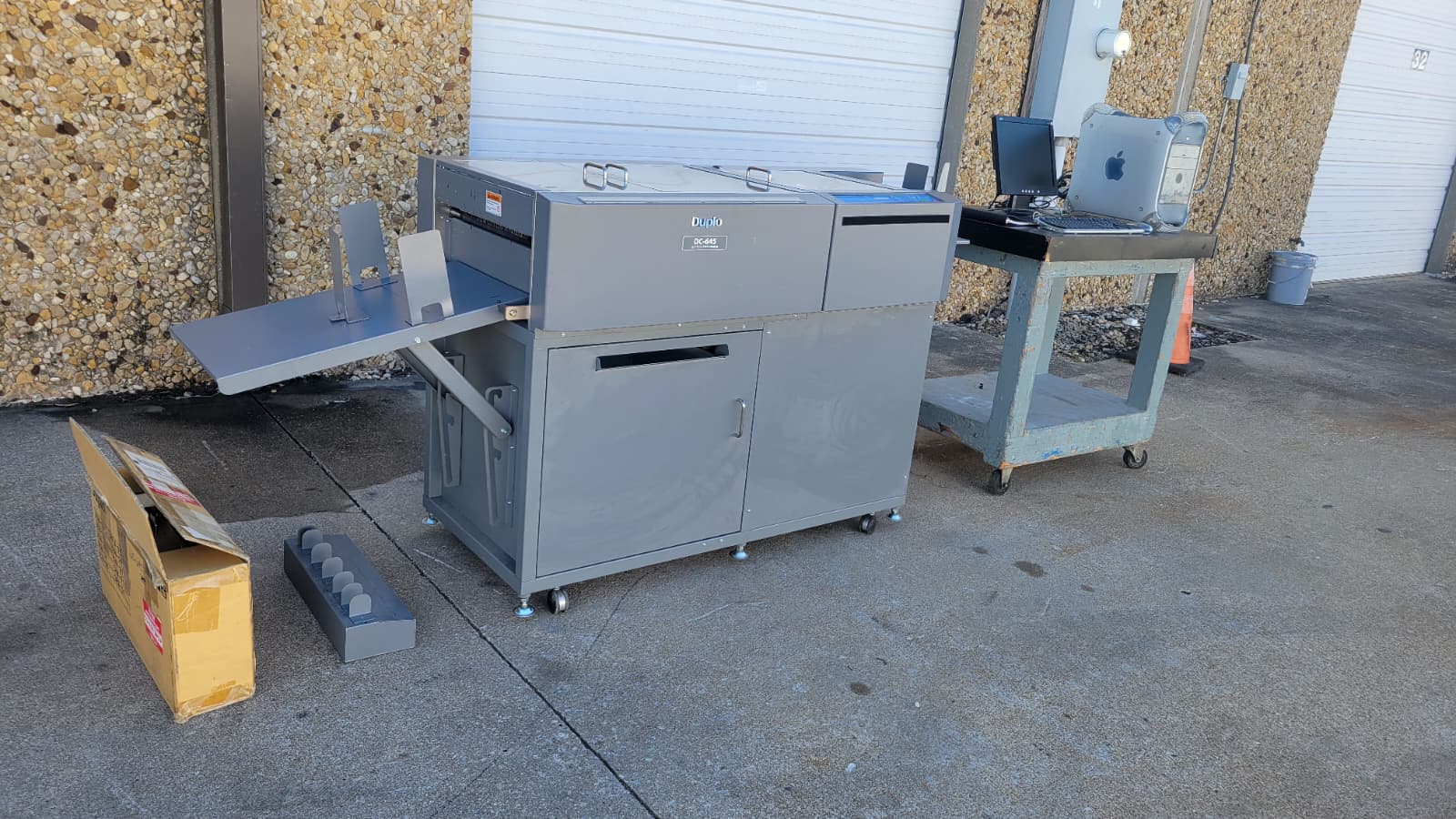

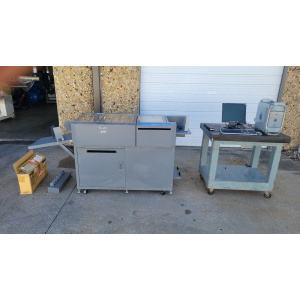

Here we have a Great running Duplo 645 Slitter, Creaser, Cutter, with 2 extra working Modules, Business Card slitter is with this machine. We are selling this machine to include Skidding up and loading onto your truck at no extra cost.
If you need a good running Duplo in your shop this one is it. Come see it running today. This one will go fast.
SLITTER CUTTER CREASER SPECIFICATIONS
Speed Up to 26 sheets per minute¹
Paper Weight 80 lb. text – 130 lb. cover (110 gsm – 350 gsm)
Paper Size Input: 210 mm x 210 mm (8.26” x 8.26”) to
370 mm x 650 mm (14.56” x 25.59”)
Minimum output: slit width 48 mm (1.89”) x cut length 85 mm (3.35”)
Paper Type Non-coated, coated, laminated²
Input Tray Capacity 100 mm (3.93”)
Slitters Six rotary slitters (two margin and four center slitters)
Slit Accuracy ±0.2 mm (±0.3 mm for business cards)
Margin Slit Width 3.2 mm – 40 mm from paper edge
Gutter Slit Width 5 mm – 15 mm (gutter strips wider than 15 mm will output on stacker tray)
Cuts Up to 15 cuts per sheet
Minimum Cut Length Lead edge cut: 3.2 mm
Gutter cut: 4 mm
Trail edge cut: 5 mm
Cut Accuracy ±0.2 mm (±0.3 mm for business cards)³

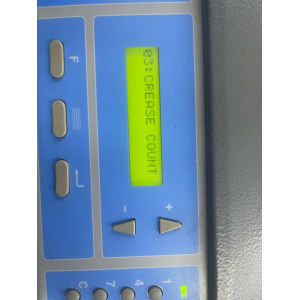

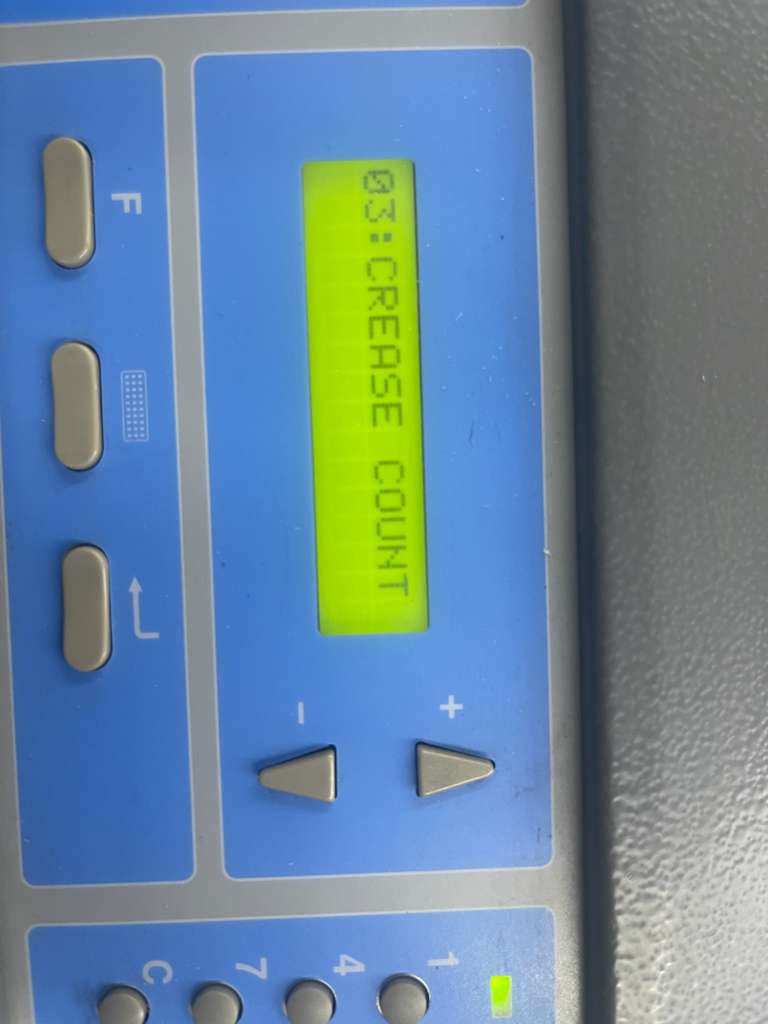

Creases Up to 10 creases per sheet
Crease Accuracy ±0.2 mm on fi nished size³
Crease Depth Adjustment Three steps
Gutter Defl ector Up to two gutter slits per sheet
Stacker Capacity 140 mm (5.5”)
Standard Features Maximum 80 job program memory; proof feed mode (process one
sheet); job program computer interface (with software installed) via USB
connector; air knife; skew adjustment; double feed detection and reject;
image shift compensation with REG mark; automatic set-up with barcode;
gutter deflector; image shrinkage compensation
This machine includes the Business card module.
Options include: perforation module (2 perforation tools, 15 pitches per inch); IFS

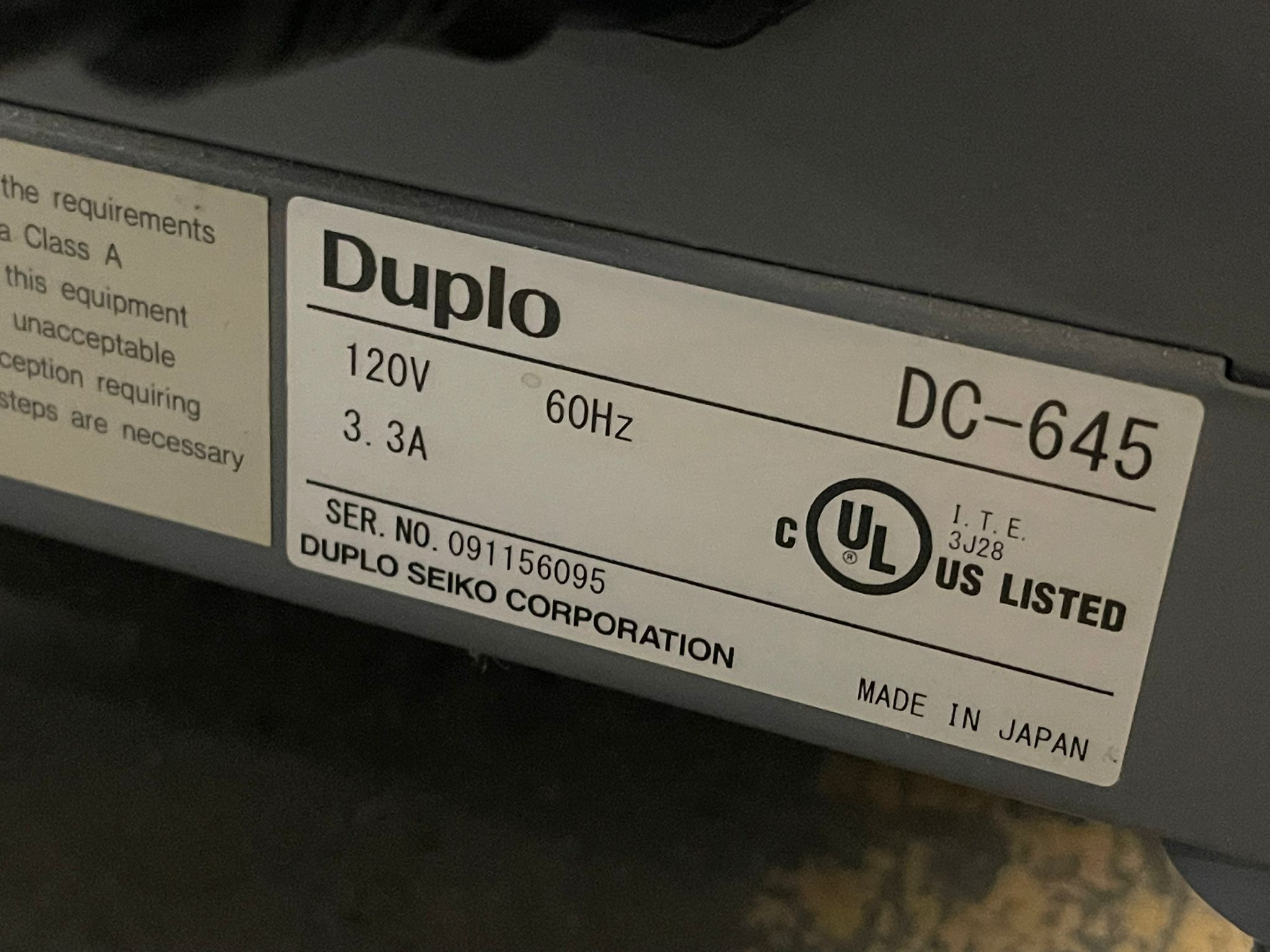

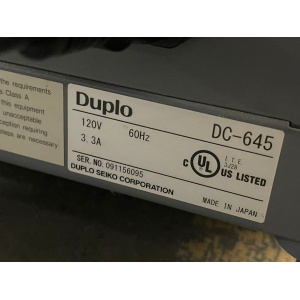

Power Consumption 120V 50/60Hz 3.3A
Dimensions (LxWxH) 30” x 90” x 45” (with additional tray 30” x 97” x 45”)
Weight 793 lbs. (360 kg)
